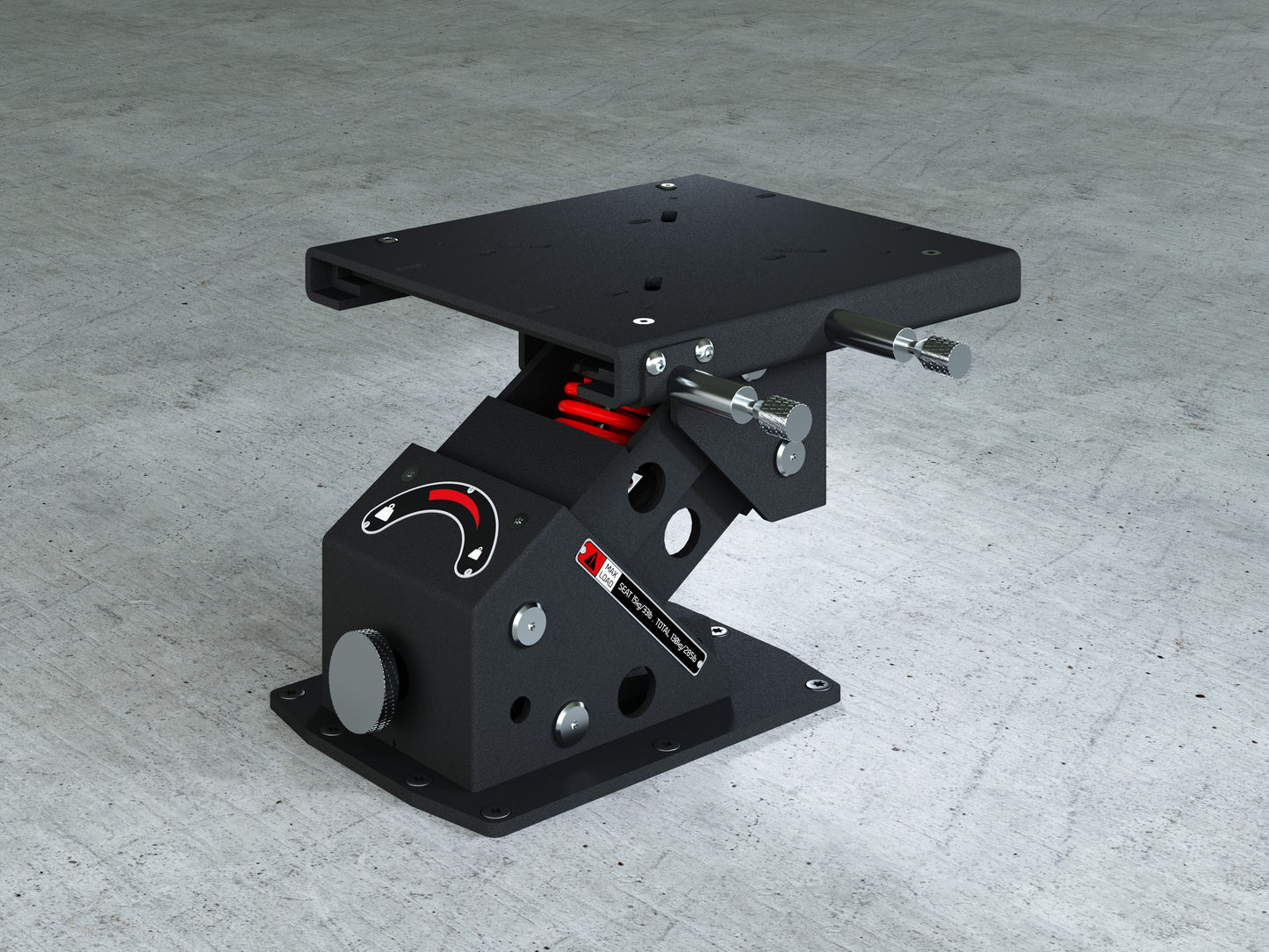

TLW-RB Suspension

Low Profile. Fast Adjustments. Full Control.

The TL-Series is the lowest-profile suspension in the lineup, offering a compact and highly responsive seating solution for high-performance marine environments. Designed with a quick-access handwheel for instant weight adjustment, it’s perfect for skippers who need on-the-go adaptability with zero hassle.

Despite its slim height, the TL-Series packs a punch—delivering full swivel and slide functionality and offering the same reliable shock protection and marine-grade durability you expect from 4S.

Key Features & Specifications:

• Height: 275 mm / 11”

• Swivel included: 360° rotation with 8 lock positions

• Slide included: Fore/aft 120 mm / 5”

• Adjustable pre-load: 50–130 kg / 110–285 lb

• Weight adjustment: Fast tuning via handwheel

• Weight: 13.5 kg / 30 lb

• Seat mount: 330 × 315 mm / 13 × 12.5”

• Handle reach: 250 mm / 10” from centerline

• Deck mount: Multiple shape/size options (compatible with RB and BR plates)

• Mounting options: Slide-only, fixed, or full set

• Compliance: Meets ABYC H-31 standards (Type AO)

Designed for the Driver:

• Simple, fast installation

• All adjustments are accessible while seated

• Handles can be installed on either side based on preference

• Ideal for tight spaces, high-speed use, and daily operations
