Product description

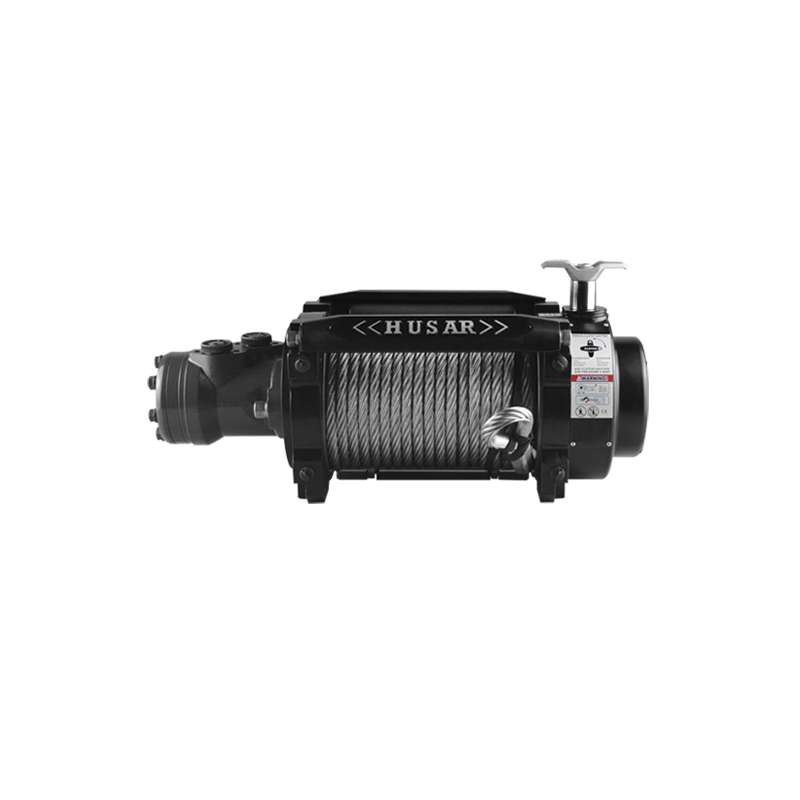

| BST H 12000lbs | Technical specifications |
| Pull capacity (single line) | 12000 lbs (5443kg) |
| Motor displacement | 65 ml/r |
| Oli flow | 5～45 L/min |
| Pressure | 14 Mpa |
| Gear | 2-stage planetary |
| Gear ratio | 25,5:1 |
| Rope | 25,5 m x 10,2 mm |
| Weight | 56 kg |
| Dimentions | 519 mm x 235 mm x 246 mm |
| Mounting bolt pattern | 254mm×114.3mm |
| Fairlead | 4-ways rollers fairlead |
| Line speed and motor current (first layer) | ||||||
| Lbs | 0 | 3000 | 6000 | 9000 | 12000 | |
| Line load | Kg | 0 | 1361 | 3629 | 6804 | 9072 |
| Line speed | m/min | 0,7 | 1,4 | 2,7 | 4,6 | 5,1 |
| Oli pressure | PSI | 290,1 | 652,7 | 986,2 | 1305,3 | 1812,9 |
| Oil flow | l/min | 5 | 10 | 20 | 35 | 40 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Lbs | 12000 | 9000 | 6000 | 3000 | |
| Rated line pull per layer | Kg | 5543 | 4082 | 2722 | 1362 |
| Cable capacity per layer | m | 5 | 11,3 | 18,6 | 25,5 |
