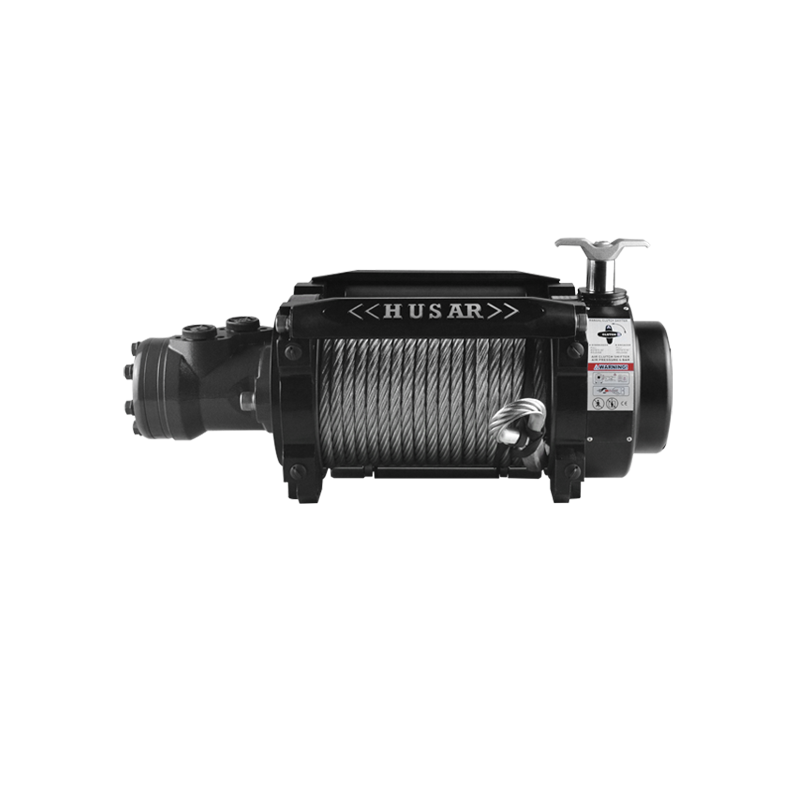

Product description
| BST H 18000lbs | Technical specifications |
| Pull capacity (single line) | 18000 lbs (8165kg) |
| Motor displacement | 80 ml/r |
| Oli flow | 5～60 L/min |
| Pressure | 13 Mpa |
| Gear | 2-stage planetary |
| Gear ratio | 34:1 |
| Rope | 26,5 m x 12 mm |
| Weight | 71,5 kg |
| Dimentions | 541 mm x 256 mm x 262 mm |
| Mounting bolt pattern | 254 mm × 114.3 mm 8-M14 |
| Fairlead | 4-ways rollers fairlead |
| Line speed and motor current (first layer) | ||||||
| Lbs | 0 | 10000 | 12000 | 15000 | 18000 | |
| Line load | Kg | 0 | 4536 | 5443 | 6843 | 8165 |
| Line speed | m/min | 0,5 | 2 | 3 | 5,5 | 6 |
| Oli pressure | PSI | 290,1 | 1261,8 | 1450,3 | 1775,2 | 1885,4 |
| Oil flow | l/min | 5 | 10 | 20 | 30 | 60 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Lbs | 18000 | 12120 | 10168 | 8757 | |
| Rated line pull per layer | Kg | 8165 | 5498 | 4612 | 3972 |
| Cable capacity per layer | m | 5,5 | 12,4 | 20,1 | 26,5 |
