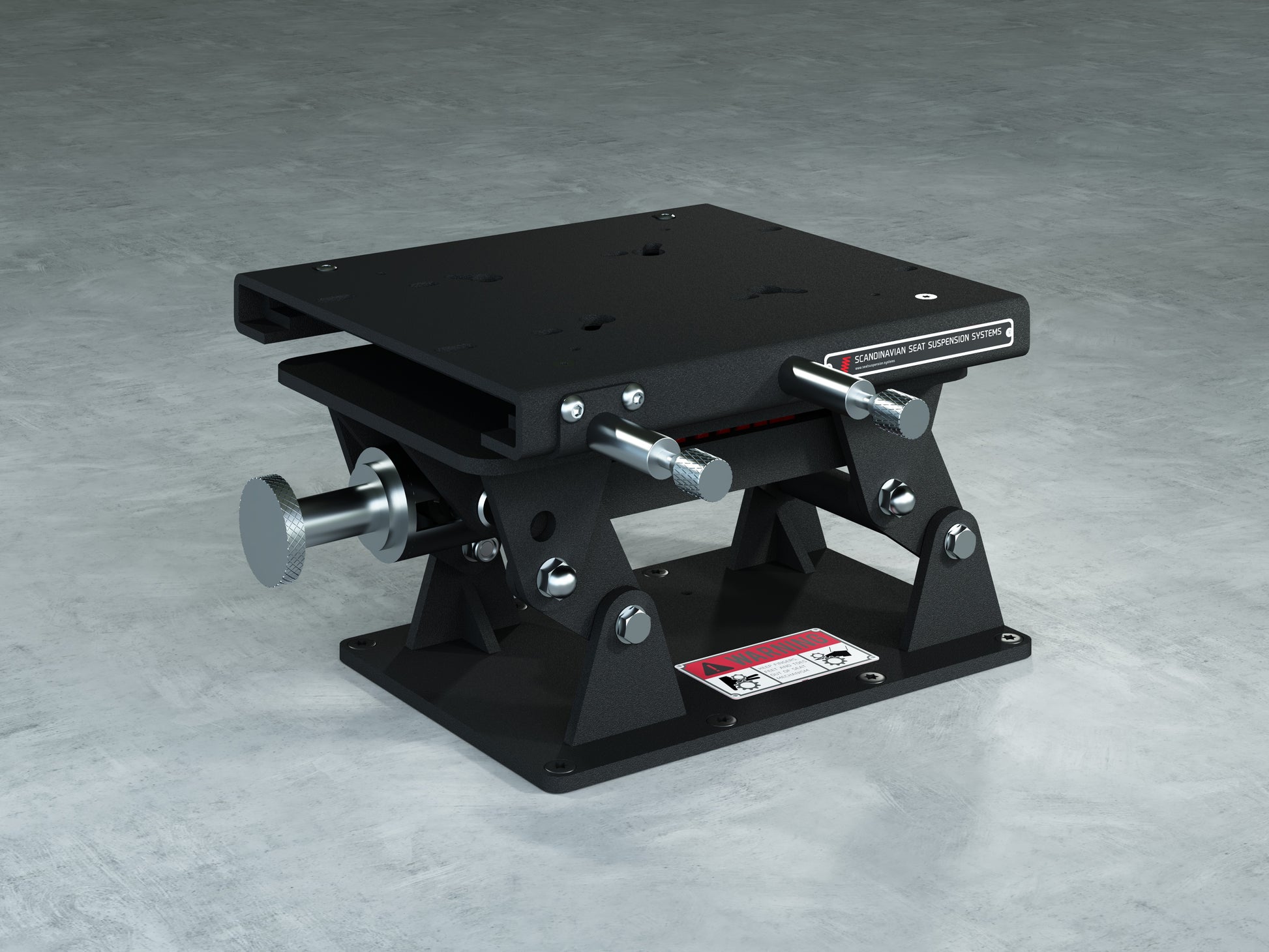

MAW-T Suspension

Ultra Low Profile. Instantly Adjustable.

The MA-Series is the most compact full-performance suspension unit in the 4S lineup. Designed for tight spaces and minimal mounting height, it stands just 220 mm (8.5”) tall—making it ideal for console seats, co-pilot positions, or any area where space is limited.

With quick weight adjustment via a front-mounted handwheel, and a clean, low-profile design, the MA-Series delivers comfort, durability, and control in a small footprint. For even lower applications, the MAS version (slide-only) offers a reduced height of just 200 mm (8”).

Key Features & Specifications:

• Height: 220 mm / 8.5”

• MAS (Slide-only version): 200 mm / 8”

• Weight adjustment: Quick handwheel adjustment

• Mounting options: Fixed, Slide-only, or Full Set (MAS)

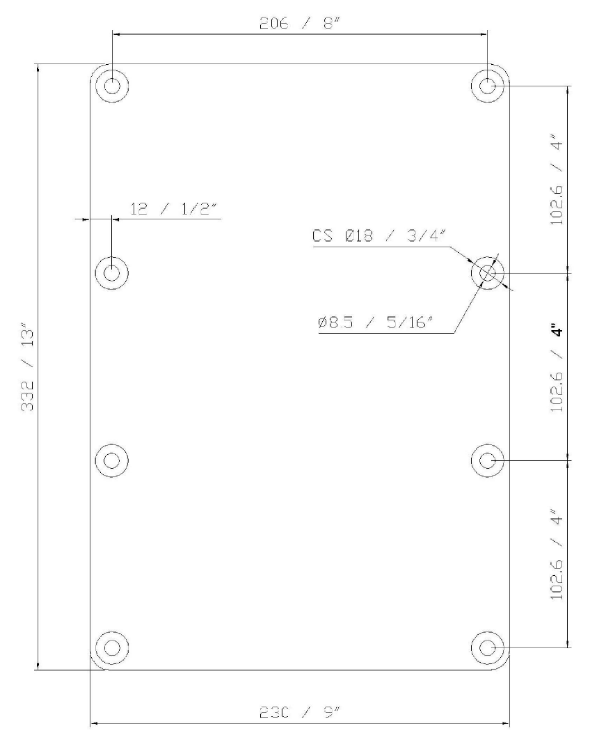

• Deck plate: One universal model (included)

• Seat mount and footprint: Compact layout for narrow decks

• Build: High-strength, marine-grade construction

• Designed for: Compact consoles, utility boats, and low-clearance seating

Why Choose the MA-Series?

• Industry-leading low profile for maximum space savings

• Instant damper adjustment without tools

• Rock-solid stability and shock-absorbing ride

• Simple to install and fits a wide variety of setups
