Product description
'-

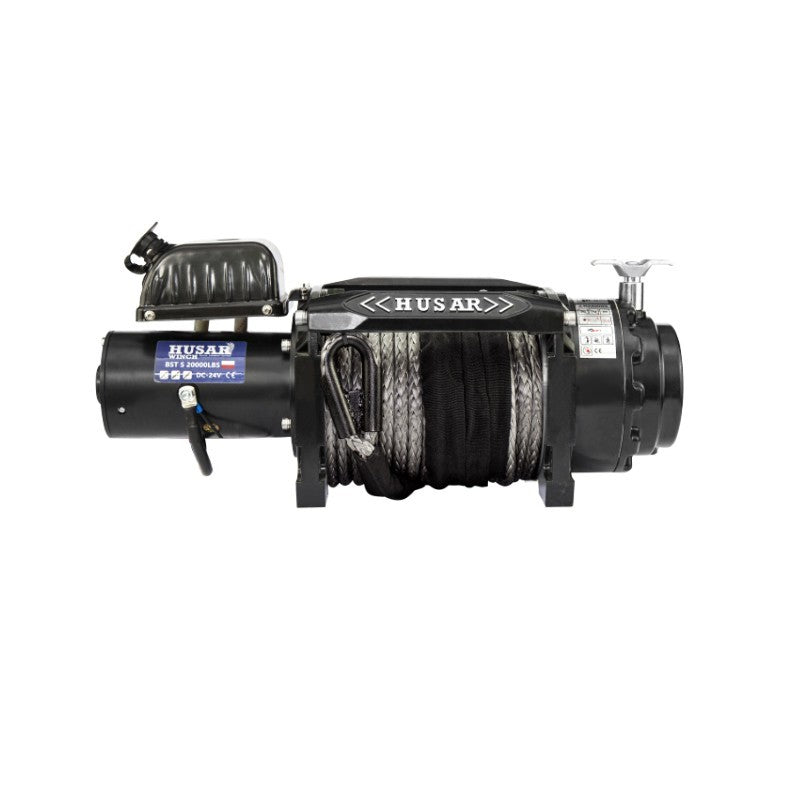

| BST S 20000lbs | Technical specifications | ||
| Pull capacity(single line) | 20000 lbs (9072 kgs) | ||
| Motor 24V | 6.0kW / 7.9hp | ||
| Controls | Wired / wireless remote control | ||
| Gear | 3-stage planetary | ||
| Gear ratio | 450:1 | ||
| Brake | Automatic | ||
| Synthetic rope | 30m x 12mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 67kg | ||
| Mounting bolt pattern | 254mm 114.3 mm | 254mm 165.1mm | ||
| Dimensions | (L x W x H) 620mm 214mm 290mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 12500 | 14000 | 17500 | 20000 |
| Kgs | 0 | 5670 | 6350 | 7938 | 9072 | |
| Line speed | M/min 24V | 4,4 | 1,6 | 1,4 | 1,2 | 1 |
| Motor current | Amps 24V | 40 | 180 | 200 | 250 | 265 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 20000 | 16160 | 13557 | 11677 | |
| Kgs | 9072 | 7330 | 6149 | 5297 | ||
| Cable capacity per layer | M | 6 | 13 | 21 | 25,5 | |
