Product description

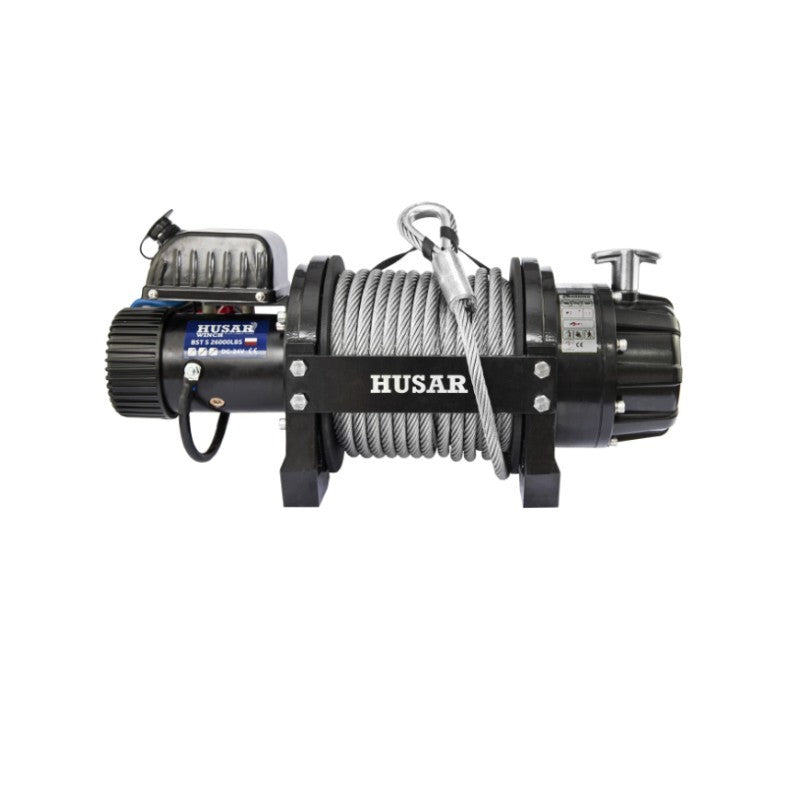

| BST S 2600lbs | Technical specifications |
| Pull capacity (single line) | 26000lbs / 11793 kg |
| Motor | 8,2 KM / 6,1 kW |
| Controls | Wired/ wireless remote control |
| Gear | 3-stage planetary |
| Gear ratio | 450:1 |
| Brake | internal ratchet brake in the gearbox |
| Rope | 26,5 m x 13,8 mm |
| Weight | 111,5 kg |
| Dimentions | 638 mm x 298 mm x 300 mm |
| Fairlead | 4-ways rollers fairlead |
| Line speed and motor current (first layer) | |||||||
| lbs | 0 | 5000 | 10000 | 15000 | 20000 | 26000 | |
| Line pull | kg | 0 | 2268 | 4536 | 6804 | 9072 | 11793 |
| Line speed | m/min 24V | 9,3 | 3,4 | 2,5 | 2 | 1,6 | 1,1 |
| Motor current | amper 24V | 23 | 90 | 140 | 180 | 230 | 280 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| lbs | 26000 | 21553 | 18406 | 16060 | |
| Rated line pull per layer | kg | 11793 | 9776 | 8348 | 7284 |
| Cable capacity per layer | m | 5,3 | 12 | 19,7 | 26,5 |
