Product description

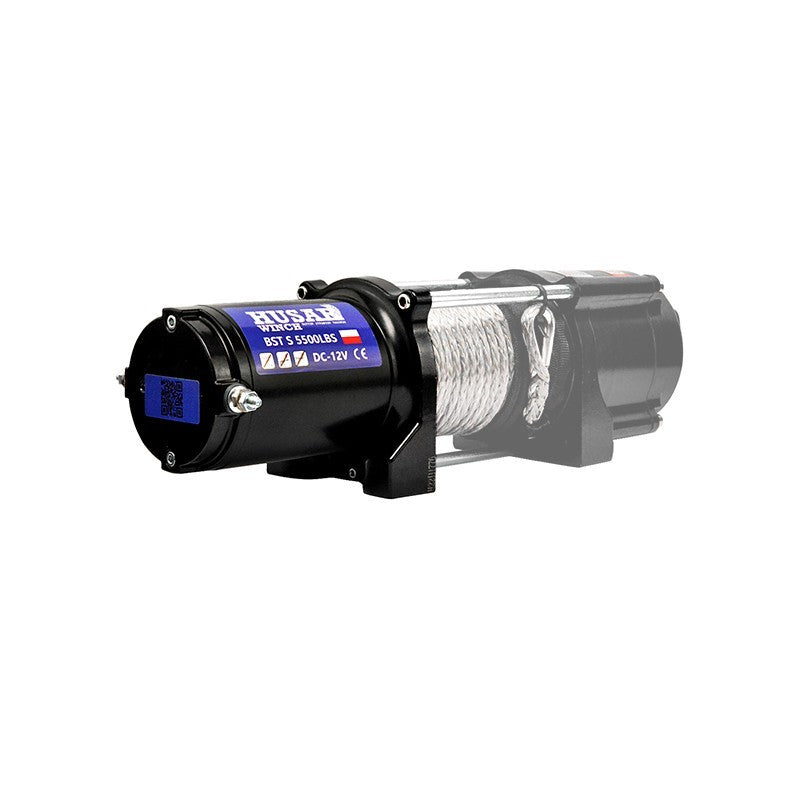

| BST S 5500lbs | Technical specifications |
| Pull capacity (single line) | 5500lbs / 2495 kg |
| Motor | 3,4 HP / 2,5 kW |
| Line speed and motor current (first layer) | ||||||
| Lbs | 0 | 2000 | 3000 | 4500 | 5500 | |
| Line pull | Kg | 0 | 1523 | 1750 | 2057 | 2495 |
| Line speed | M/min | 3,9 | 2,6 | 2,1 | 1,4 | 1,1 |
| Motor current | Amper | 28 | 120 | 160 | 220 | 280 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Lbs | 5500 | 4535 | 3858 | 3357 | |
| Rated line pull per layer | Kg | 2495 | 2057 | 1750 | 1523 |
| Cable capacity per layer | m | 3,7 | 8 | 12,8 | 14,5 |
