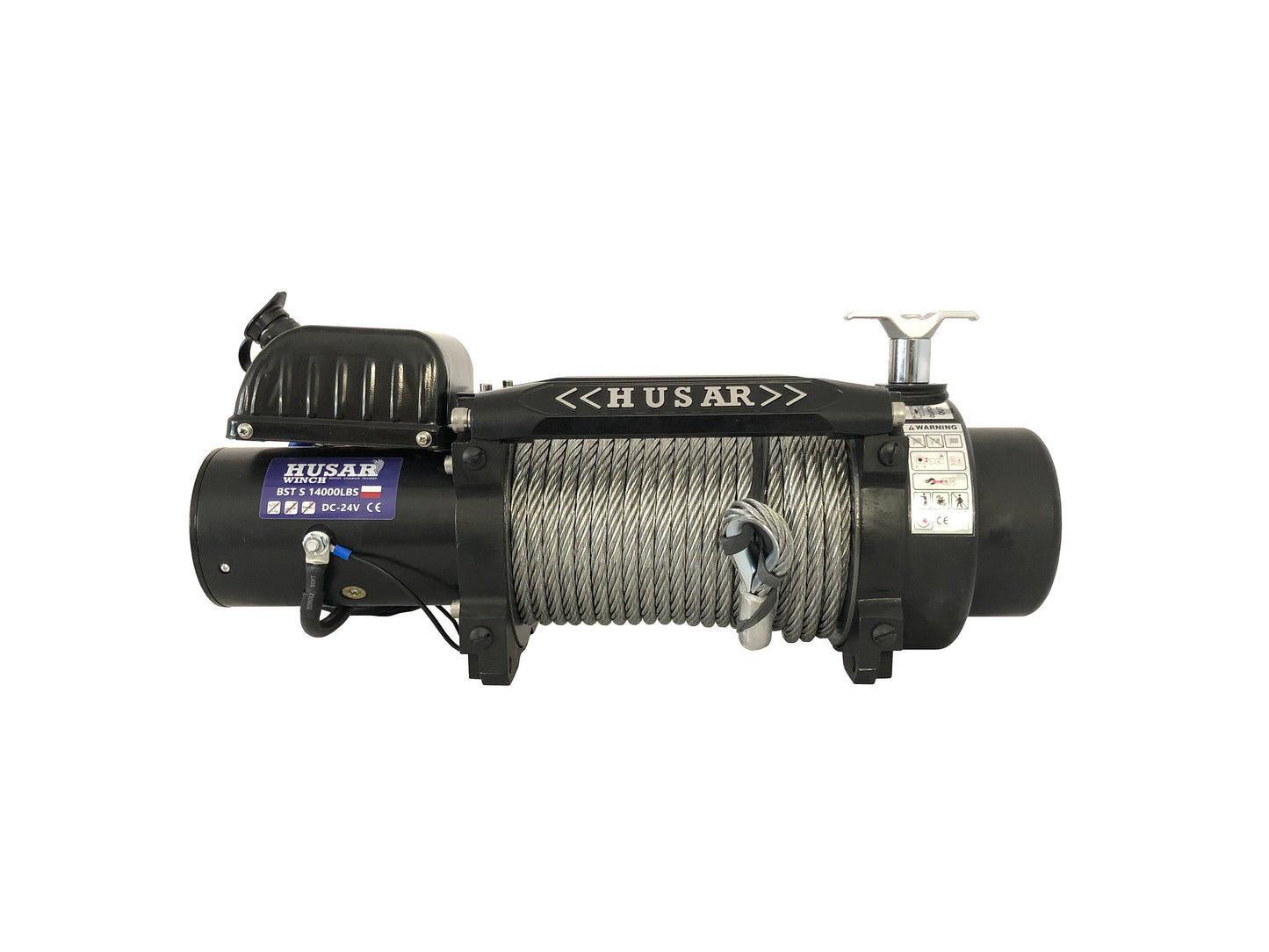

Product description
| BST S 14000lbs | Technical specifications |
| Pull capacity (single line) | 14000lbs / 6350 kg |
| Motor | 6,4 km / 4,7 kW / 6,7 KM / 4,9 kW |
| Controls | Wired/ wireless remote control |
| Gear | 3-stage planetary |
| Gear ratio | 332:1 |
| Brake | automatic |
| Rope | 28,5 m x 10,2 mm |
| Weight | 60 kg |
| Dimentions | 573 mm x 206 mm x 249 mm |
| Fairlead | 4-ways rollers fairlead |
| Line speed and motor current (first layer) | |||||
| Lbs | 0 | 8000 | 10000 | 14000 | |
| Line pull | Kg | 0 | 3629 | 4536 | 6350 |
| Line speed | M/min 12V | 5 | 1,9 | 1,7 | 1,2 |
| Line speed | M/min 24V | 5,4 | 2 | 1,8 | 1,5 |
| Motor current | Amper 12V | 80 | 310 | 410 | 470 |
| Motor current | Amper 24V | 40 | 145 | 235 | 280 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Lbs | 16500 | 14227 | 1191 | 10299 | |
| Rated line pull per layer | Kg | 6350 | 5105 | 4268 | 3667 |
| Cable capacity per layer | m | 6 | 13 | 21 | 28,5 |
