Product description

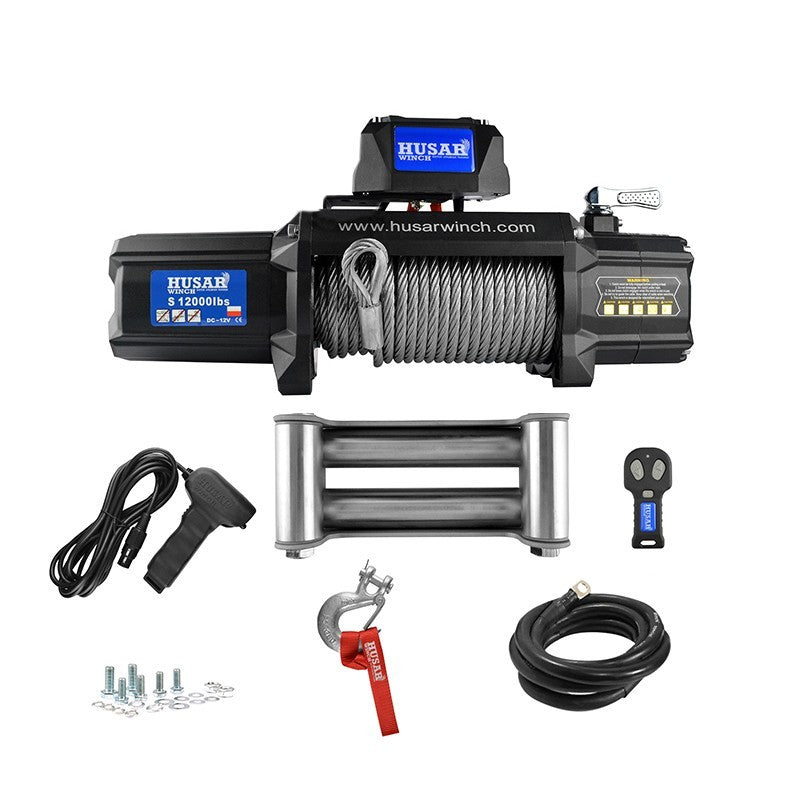

| BST S 12000lbs | Technical specifications |
| Pull capacity (single line) | 12000lbs / 5443 kg |
| Motor | 6,0 HP / 4,4 kW |
| Controls | Wired/ wireless remote control |
| Gear | 3-stage planetary |
| Gear ratio | 265:1 |
| Brake | automatic |
| Rope | 25 m x 9,5 mm |
| Weight | 38 kg |
| Dimentions | 545 mm x 160 mm x 194 mm |
| Fairlead | 4-ways rollers fairlead |
| Line speed and motor current (first layer) | ||||||
| Lbs | 0 | 4000 | 6000 | 10000 | 12000 | |
| Line pull | Kg | 0 | 1814 | 2722 | 4536 | 5443 |
| Line speed | M/min | 6,8 | 3,8 | 3 | 2,1 | 1,7 |
| Motor current | Amper | 80 | 170 | 210 | 310 | 360 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Lbs | 12000 | 9900 | 8300 | 7000 | |
| Rated line pull per layer | Kg | 5443 | 4490 | 3765 | 3175 |
| Cable capacity per layer | m | 6 | 13 | 22 | 25 |
