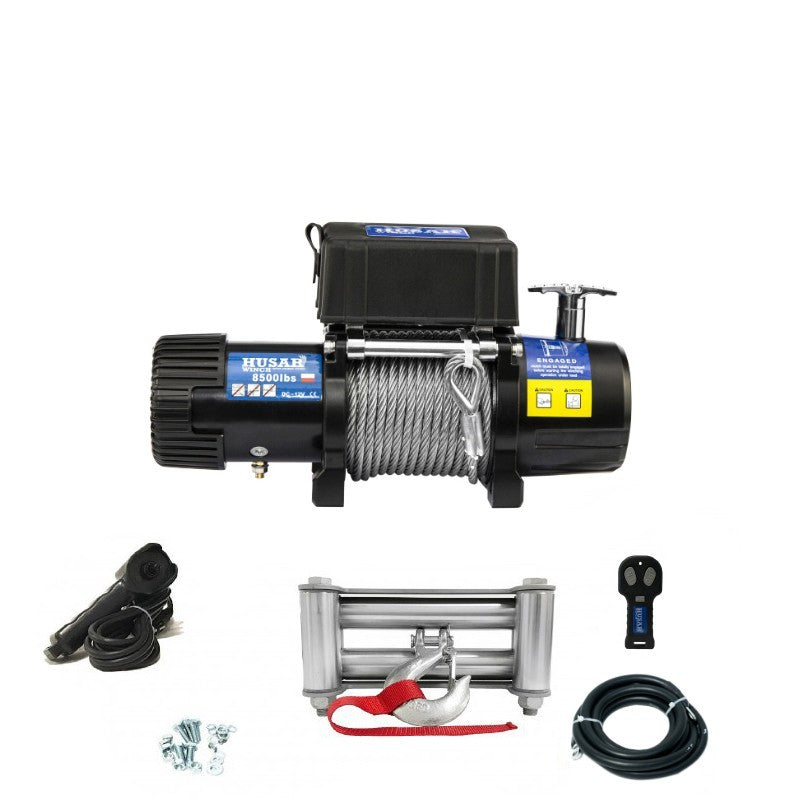

Product description
| BST 8500lbs | Technical specifications |
| Pull capacity (single line) | 8500lbs / 3856 kg |
| Motor | 5,5 HP / 4 kW |
| Controls | Wired/ wireless remote control |
| Gear | 3-stage planetary |
| Gear ratio | 218:1 |
| Brake | automatic |
| Rope | 24 m x 8 mm |
| Weight | 31 kg |
| Dimentions | 440 mm x 160 mm x 218 mm |
| Fairlead | 4-ways rollers fairlead |
| Line speed and motor current (first layer) | ||||||
| Lbs | 0 | 2000 | 4000 | 6000 | 8500 | |
| Line pull | Kg | 0 | 907 | 1814 | 2722 | 3856 |
| Line speed | M/min | 7,8 | 4,8 | 3,63 | 2,95 | 2,4 |
| Motor current | Amper | 80 | 130 | 180 | 230 | 290 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Lbs | 8500 | 6640 | 5600 | 4800 | |
| Rated line pull per layer | Kg | 3856 | 3010 | 2540 | 2177 |
| Cable capacity per layer | m | 6 | 13,2 | 22 | 24 |
