Product description

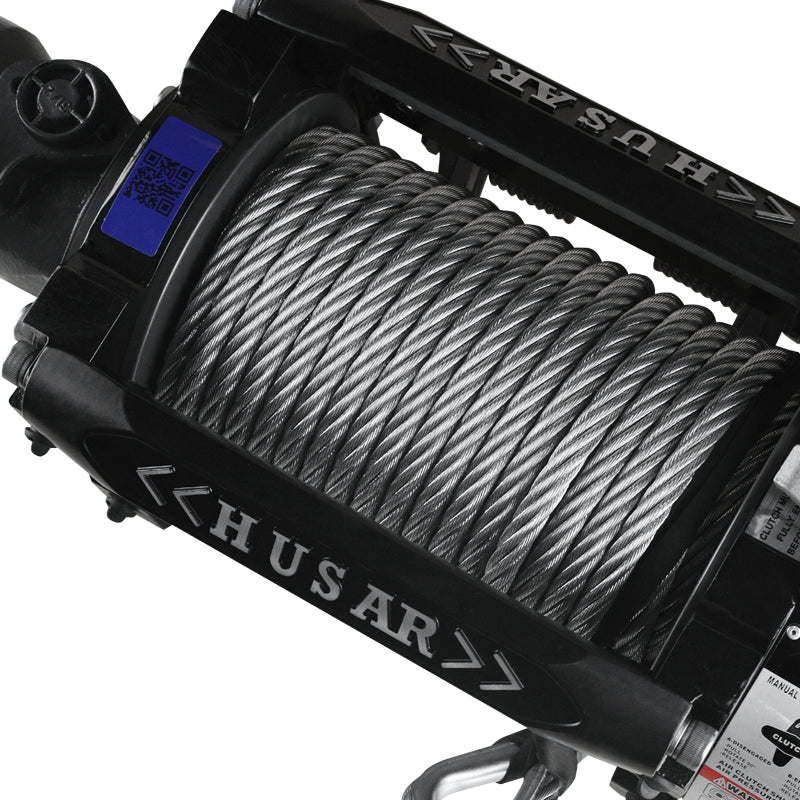

| BST H 15000lbs | Technical specifications |
| Pull capacity (single line) | 15000 lbs (6804 kg) |
| Motor displacement | 65 ml/r |
| Oli flow | 5～45 L/min |
| Pressure | 14 Mpa |
| Gear | 2-stage planetary |
| Gear ratio | 26:1 |
| Rope | 25,5 m x 11 mm |
| Weight | 66,5 kg |
| Dimentions | 519 mm x 236 mm x 246 mm |
| Mounting bolt pattern | 254 mm × 114.3 mm |
| Fairlead | 4-ways rollers fairlead |
| Line speed and motor current (first layer) | ||||||
| Lbs | 0 | 5000 | 10000 | 12000 | 15000 | |
| Line load | Kg | 0 | 1361 | 2722 | 4536 | 6804 |
| Line speed | m/min | 0,7 | 1,4 | 2,7 | 4,6 | 5,3 |
| Oli pressure | PSI | 290,1 | 623,7 | 1261,8 | 1450,3 | 1885,4 |
| Oil flow | l/min | 5 | 10 | 20 | 35 | 50 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Lbs | 15000 | 12120 | 10168 | 8757 | |
| Rated line pull per layer | Kg | 6804 | 5498 | 4612 | 3972 |
| Cable capacity per layer | m | 5 | 11,3 | 18,6 | 25,5 |
